Gigabyte GO27Q24G

Introduction

Gigabyte have recently released a new monitor in their range, providing a very attractively priced option for those looking to venture in to the world of OLED displays. The GO27Q24G offers a familiar 27″ screen size with a 2560 x 1440 resolution, along with a 240Hz refresh rate. It’s using a WOLED panel from LG Display featuring their Micro Lens Array+ (MLA+) technology. It’s not the latest Tandem WOLED technology, but the use of this slightly older panel gen allows for a very competitive price point, while still offering some excellent performance and specs.

One of the key features of this new model is the use of an updated glossy screen coating from the panel manufacturer, marketed under the brand name of ‘RealBlack glossy’ by Gigabyte. This is the same glossy panel coating we’ve seen on some other modern WOLED monitors, including their own MO27Q28GR display also launched recently. We’ve also seen this same coating on some competing monitors from Asus, including the recently reviewed ROG Strix XG27AQDMG Gen 2, which uses the exact same panel as this Gigabyte model and offers a similar spec. This glossy coating offers a super clear and sharp image, which we know many people are interested in.

• Related content: More Glossy WOLED Monitors! Gigabyte Launch Two New Models, With More to Come

#affiliate. We may earn a commission if you purchase from our affiliate links in this content – TFTCentral is a participant in the Amazon Services LLC Associates Programme, an affiliate advertising programme designed to provide a means for sites to earn advertising fees by advertising and linking to Amazon.com, Amazon.co.uk, Amazon.de, Amazon.ca and other Amazon stores worldwide. We also participate in a similar scheme for Overclockers.co.uk, Newegg, Bestbuy, Walmart, B&H and some manufacturers.

Key Specs

• 27″ size (accurately 26.5″) with a flat format
• LG Display WOLED panel technology with MLA+
• ‘RealBlack glossy’ screen coating
• 2560 x 1440 resolution
• 240Hz refresh rate
• Adaptive-sync with NVIDIA ‘G-sync Compatible’ and AMD ‘FreeSync Premium’ certifications
• ‘UltraClear’ BFI blur reduction mode and OLED VRR Anti-flicker modes
• VESA DisplayHDR 400 True Black certification and 1300 nits peak brightness for HDR
• Connections: 1x DisplayPort 1.4 (With DSC), 2x HDMI 2.1, 1x USB type-C (15W power delivery), 1x headphone jack
• PiP and PbP support
• Full range of tilt, height, swivel and rotate stand adjustments

A note about the WOLED panel naming convention

Note that the WOLED panel used here is part of what we refer to as “Gen 2”. Originally produced in 2024. it uses MLA (Micro Lens Array+) as opposed to being one of the most recent “4th Gen” Tandem WOLED technology panels. It also has the older sub-pixel layout that was used at the time, as opposed to the updated layout that came in Gen 3 and Gen 4 panels.

The updated panel used here went in to mass production in late 2025 and uses the same underlying panel as the 2024 version, just with an updated glossy coating finish. We distinguished this 27″ 1440p 240Hz panel from the later “Gen 3” panels since those later panels included a shift to an improved sub-pixel layout. The “Gen 2” naming is our own, but the important thing to note here really is that it’s the same panel from 2024, with an updated coating finish. Other aspects have not been updated.

For more information on the different generations, naming schemes, Tandem WOLED and so on, check out our video here.

Design and Features

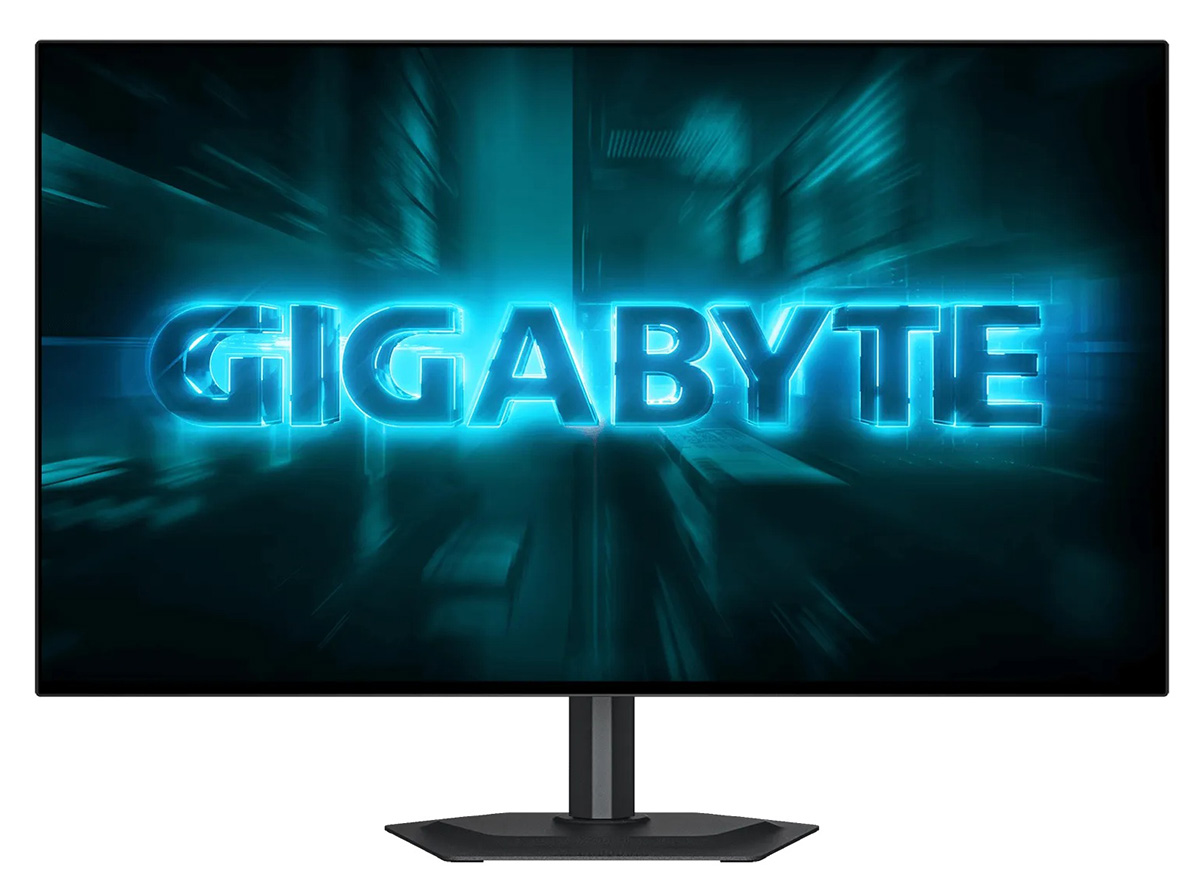

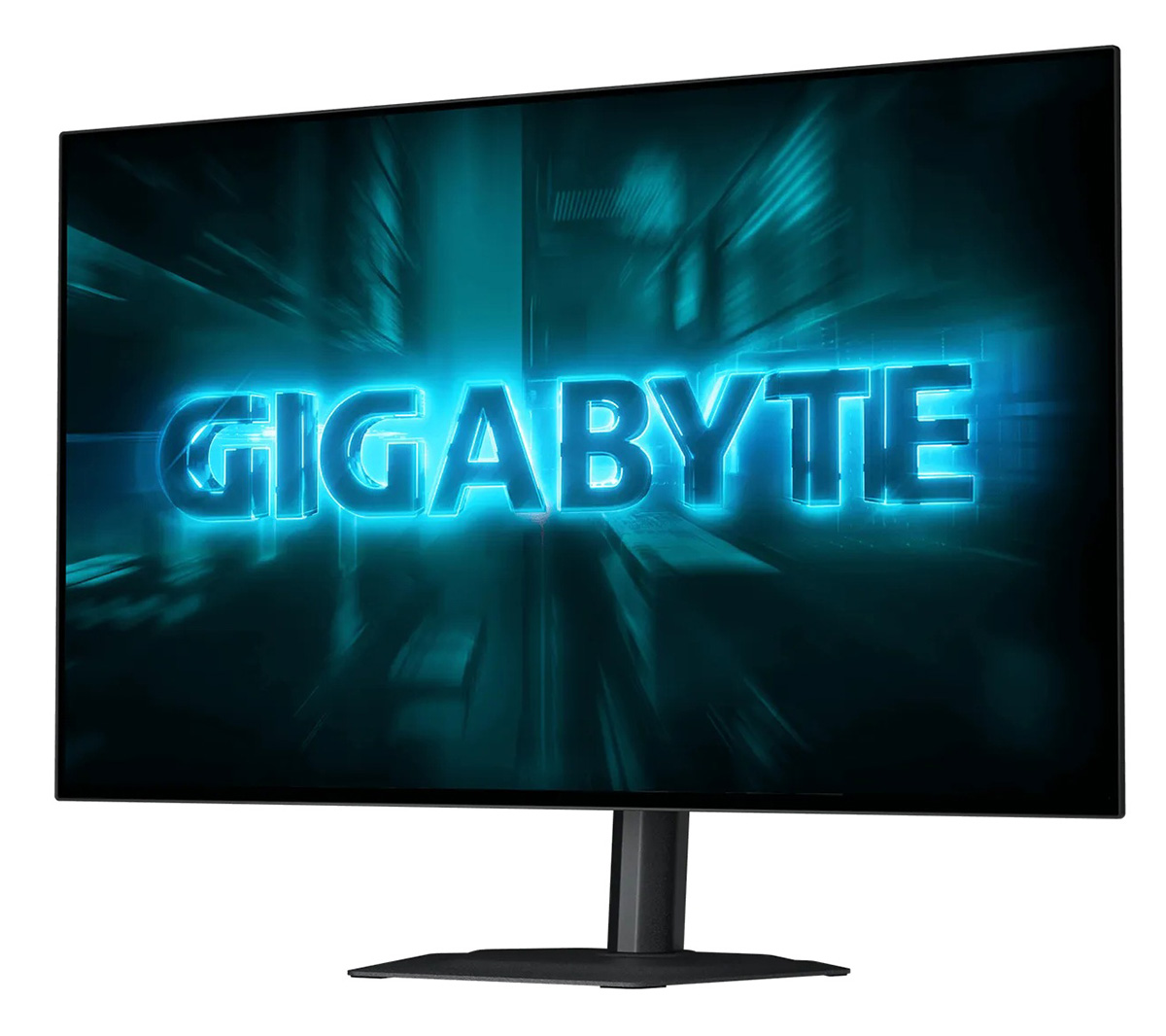

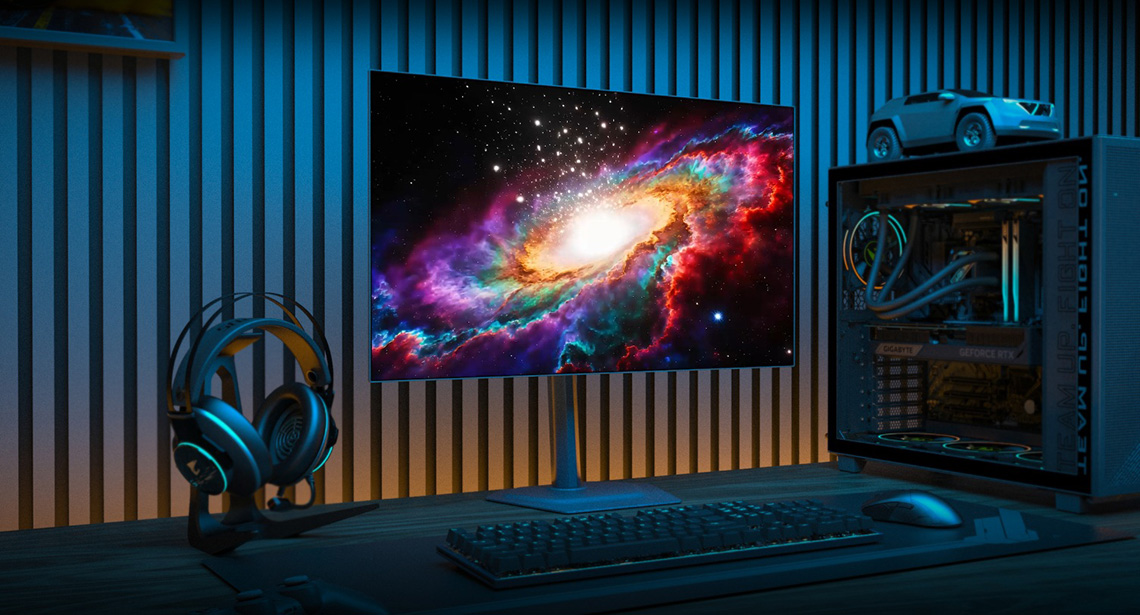

The GO27Q24G comes in a familiar design aesthetic which looks the same as their other recent OLED monitors. There’s a 4-side “borderless panel” with a very thin plastic edge, and then a thin black panel border before the image starts. The total border measures ~8.5mm along the edges and top, and ~12mm along the bottom. There’s no writing, logos or labels visible from the front view, it looks very neat and minimalist.

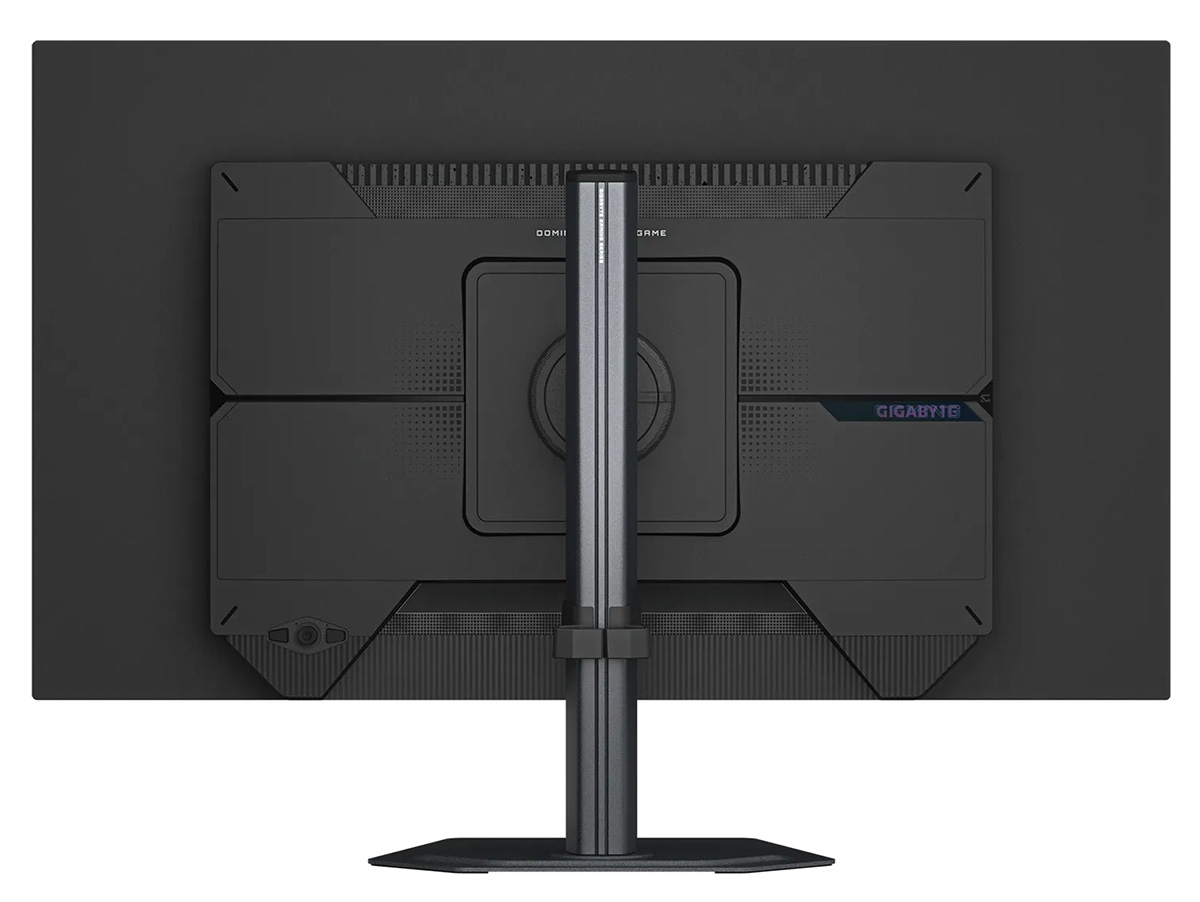

The back of the screen is encased in a matte black plastic with the stand attaching via a quick release mechanism in the middle. This can also be removed in favour of 100 x 100mm VESA mounting if needed.

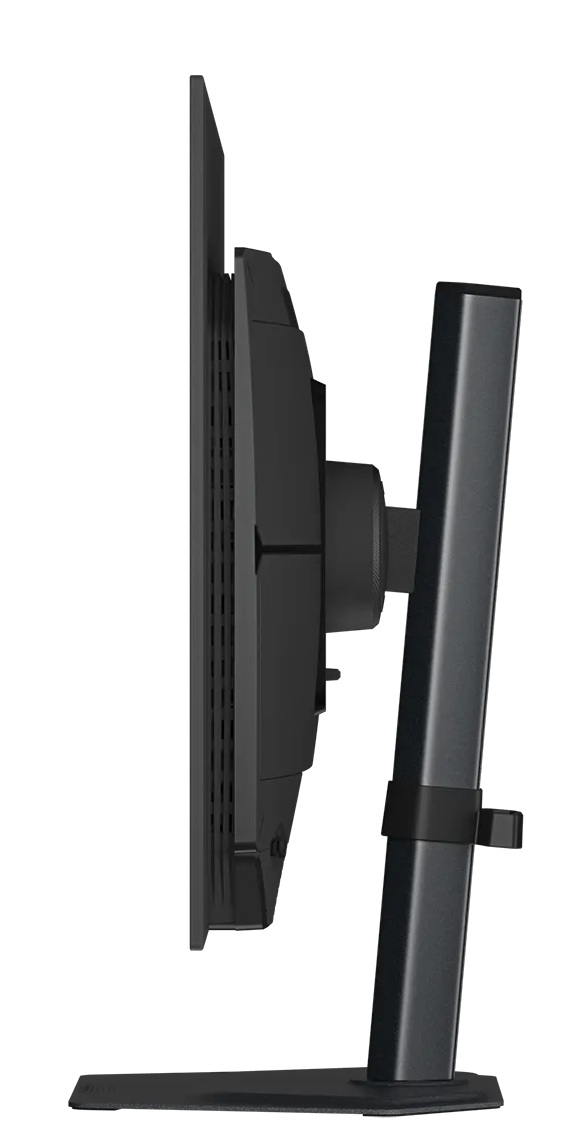

The side view of the screen shows a thin panel section, but a bulkier central section where the internal electronics and connections are housed. The arm is a dark grey metal, as is the thin foot to the stand. There’s a full range of tilt, height, swivel and rotate adjustments offered from the stand which are all smooth and pretty easy to use. The side to side swivel is a little limited in adjustment range, but should be adequate for most situations on a desk.

Connections

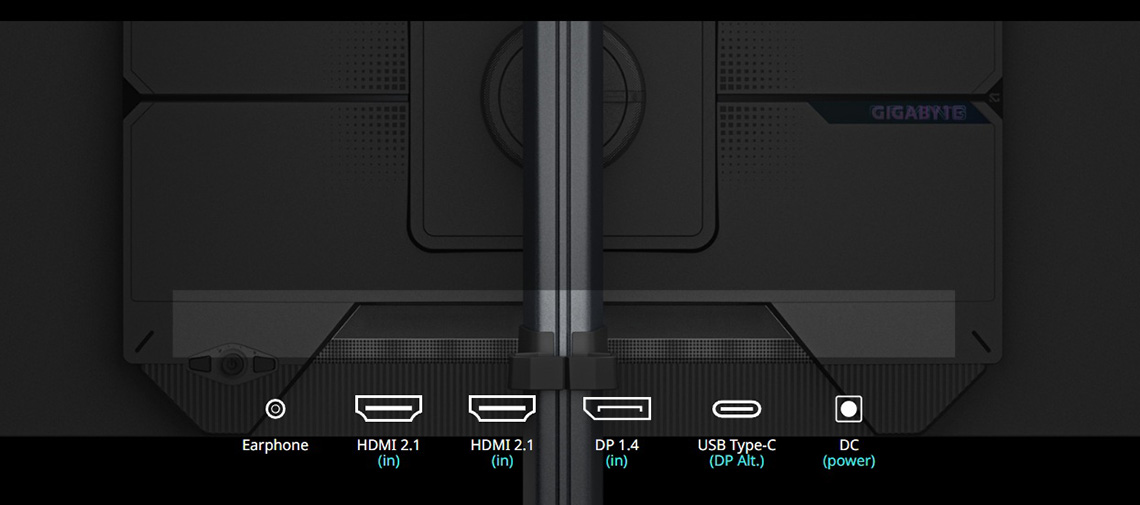

On the back of the screen there are 1x DisplayPort 1.4 (with DSC), 2x HDMI 2.1 and 1x USB type-C connections for supporting video. The USB-C has DP Alt mode and 15W power delivery. There’s no USB-A data ports on this model though, so no KVM switch function is offered. PiP and PbP modes are supported for handling multiple video inputs if needed. There’s a headphone jack on the back of the screen, but note that there’s no integrated speakers on this model, unlike many of Gigabyte’s other OLED monitors.

OSD menu

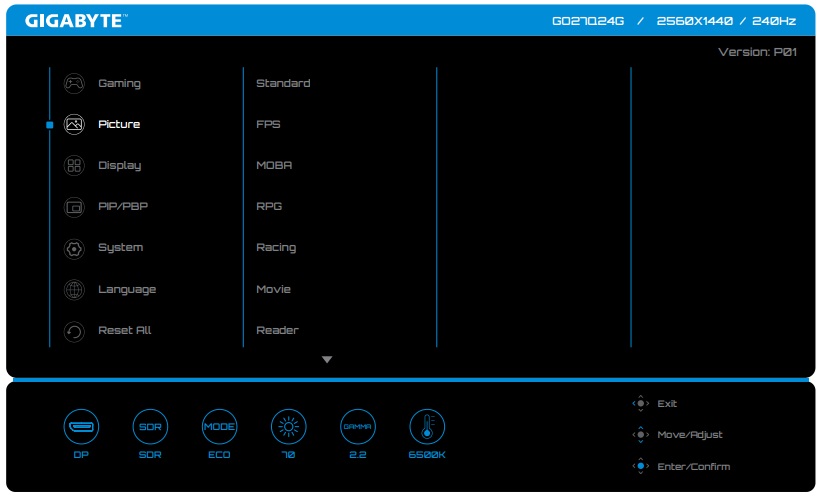

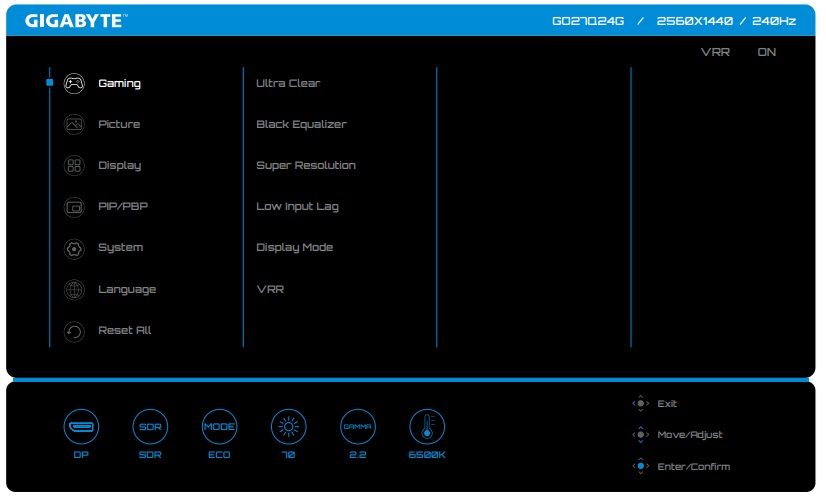

The OSD menu is controlled via a single joystick toggle on the back right hand side of the screen, providing quick, easy and intuitive navigation around the menu.

There’s a very good range of settings available and some quick access sections using the directions on the toggle. There’s also a pressable button on the back for the ‘Tactical Switch 2.0’ feature which switches to a smaller simulated screen size for gaming.

‘RealBlack Glossy’ Coating

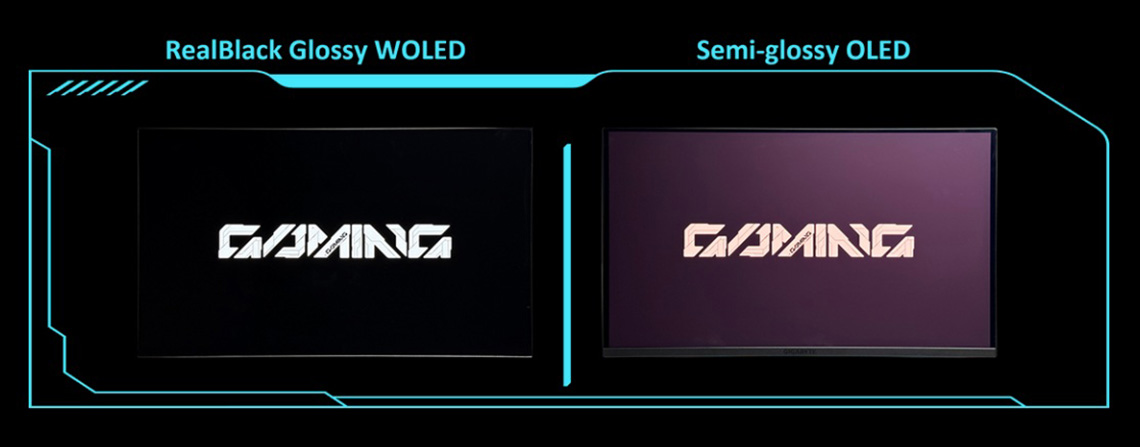

One of the key selling points of this new Gigabyte display is the inclusion of their so-called ‘RealBlack glossy’ screen coating. This is a screen coating applied at the factory by the panel manufacturer LG.Display instead of (not on top of) the matte AG coating, and it’s an updated version of their original glossy coating they released back in 2024.

This new coating offers:

• A zero-haze (0%) optical layer which removes the slight graininess that was visible on the original glossy WOLED panel from 2024 for a clean, clear and crisp image. The original coating was rated with a 3% haze finish and we observed some minor grain to the image during our testing, which is removed here.
• A reported 38% drop in ambient reflections “compared to previous-gen glossy WOLED panels” . We found some improvements compared with the original coating with a slightly less reflective finish although it’s hard to provide objective comparisons here, only our subjective observations.

Related content: More Glossy WOLED Monitors! Gigabyte Launch Two New Models, With More to Come

OLED Care

Gigabyte offer a 3 year warranty with the monitor, including burn-in cover which gives some added peace of mind around usage and image retention risks. This is the same as on their other recent OLED monitors.

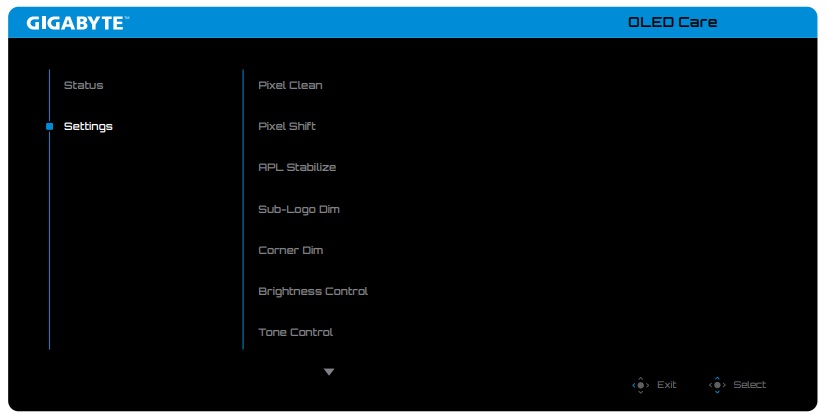

To help mitigate the risks of image retention Gigabyte provide an extensive range of OLED care options within the OSD menu which are covered below

OLED Care and Warranty
Warranty period	3 years
Burn-in cover
Screen saver
Pixel / screen shift
Logo dimming
Taskbar detection
Motion / proximity sensor
Other OLED care features	Corner dim Brightness control Tone control

There’s a couple of features here which are less commonly seen in the OLED space which include: Corner Dim: Reduces the brightness at the four corners of the screen. Brightness Control: Reduces image retention by balancing brightness across screen areas. Tone Control: Optimizes brightness over time to reduce aging and extend panel life. We’d like to see Gigabyte explore motion sensors for their OLED monitors in the future perhaps, although we appreciate you can’t have everything at a low price point.

Brightness and Contrast

For this testing we disabled the OLED care features in the OSD menu as those can have a small impact to screen brightness in certain situations. We would recommend enabling as many of those features as possible to mitigate risks of burn-in, although you may need to experiment for your particular usage to ensure none are distracting or problematic. We also moved to the ‘performance’ power mode which opened up proper access to all the settings.

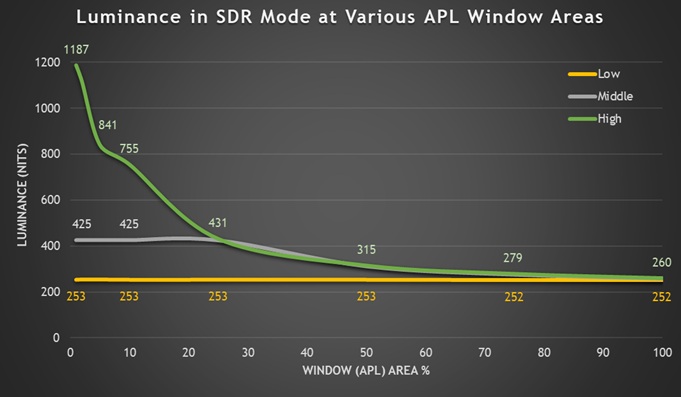

If you leave the screen set to ‘APL stabilize’ low in the OLED care menu then in SDR mode it operates with a uniform brightness behaviour without any ABL dimming, and so you get consistent brightness levels during desktop usage regardless of your content and windows sizes. We measured a maximum 253 nits in SDR which was typical for an OLED panel although a little lower than the specified 275 nits. More recent Tandem WOLED panels can reach brighter, up to around 339 nits for instance in the case of Gigabyte’s MO27Q28G model.

You can disable uniform brightness if you want to get a boost in potential SDR brightness up to ~425 nits in the ‘middle’ mode and an even higher 1187 nits in ‘high’ mode, although you would then have to live with some ABL dimming in certain situations. This is more noticeable in the high mode, with the middle mode being less aggressive in dimming. These modes are likely ok though for SDR gaming and multimedia, and other dynamic content; with the uniform mode (low) preferrable for desktop applications and general uses.

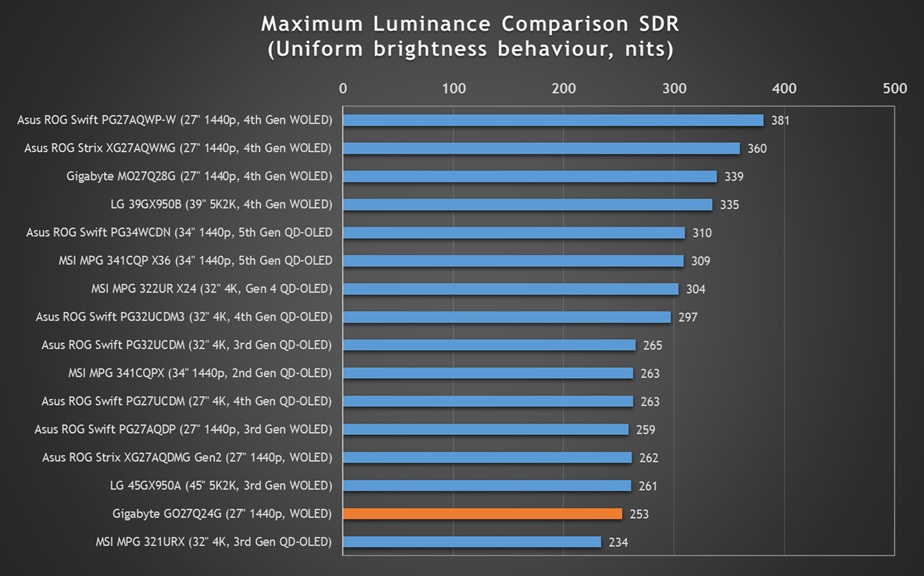

Only the most recent Gen 4 Tandem WOLED (335 – 380 nits) and some of the Gen 4 / 5 QD-OLED panels (~310 nits) reach noticeably higher, and so the performance here is as expected for an older gen WOLED panel offering. The minimum adjustment range is decent at 28 nits, making it useable in darker room conditions.

Black depth and contrast	APL stabilize middle / high	APL stabilize low (uniform brightness)
Max luminance (nits)	1187 (high) 425 (middle)	253
Min Luminance (nits)	28	28
Uniform / No ABL
Remains uniform in Windows desktop

Keep in mind also that as a result of the amazing contrast ratio of the OLED panel, the perceived brightness in SDR mode is equivalent to an approximate 445 nits LCD monitor, even when using the uniform brightness mode so that should be plenty bright enough for most users. We explained the principles behind this in our article here, although we can’t officially give this screen a ‘TrueBright’ certification tier as that’s a programme created for QD-OLED monitors. The same principles apply though.

Testing Methodology Explained (SDR)

Performance is measured and evaluated with a high degree of accuracy using a range of testing devices and software. The results are carefully selected to provide the most useful and relevant information that can help evaluate the display while filtering out the wide range of information and figures that will be unnecessary. For measurement, we use a UPRtek MK550T spectroradiometer which is particularly accurate for colour gamut and colour spectrum measurements. We also use an X-rite i1 Pro 2 Spectrophotometer and a X-rite i1 Display Pro Plus colorimeter for various measurements. Several other software packages are incorporated including Portrait Displays’ Calman color calibration software – available from Portrait.com.

We measure the screen at default settings (with all ICC profiles deactivated and factory settings used), and any other modes that are of interest such as sRGB emulation presets. We then calibrate and profile the screen before re-measuring the calibrated state.

The results presented can be interpreted as follows:

• Gamma – we aim for 2.2 gamma which is the default for computer monitors in SDR mode. Testing of some modes might be based on a different gamma but we will state that in the commentary if applicable. A graph is provided tracking the 2.2 gamma across different grey shades and ideally the grey line representing the monitor measurements should be horizontal and flat at the 2.2 level, marked by the yellow line. Depending on where the gamma is too low or too high, it can have an impact on the image in certain ways. You can see our gamma explanation graph to help understand that more. Beneath the gamma graph we include the average overall gamma achieved along with the average for dark shades (0 black to 50 grey) and for lighter shades (50 grey to 100 white).


• RGB Balance and colour temperature – the RGB balance graph shows the relative balance between red, green and blue primaries at each grey shade, from 0 (black) to 100 (white). Ideally all 3 lines should be flat at the 100% level which would represent a balanced 6500K average colour temperature for all grey shades. This is the target colour temperature for desktop monitors, popular colour spaces like sRGB and ‘Display DCI-P3’ and is also the temperature of daylight. It is the most common colour temperature for displays, also sometimes referred to as D65. Where the RGB lines deviate from this 100% flat level the image may become too warm or cool, or show a tint towards a certain colour visually. Beneath this RGB balance graph we provide the average correlated colour temperature for all grey shades measured, along with its percentage deviance from the 6500K target. We also provide the white point colour temperature and its deviance from 6500K, as this is particularly important when viewing lots of white background and office content.


• Greyscale dE – this graph tracks the accuracy of each greyscale shade measured from 0 (black) to 100 (white). The accuracy of each grey shade will be impacted by the colour temperature and gamma of the display. The lower the dE the better, with differences of <1 being imperceptible (marked by the green line on the graph), and differences between 1 and 3 being small (below the yellow line). Anything over dE 3 needs correcting and causes more obvious differences in appearance relative to what should be shown. In the table beneath the graph we provide the average dE across all grey shades, as well as the white point dE (important when considering using the screen for lots of white background and office content), and the max greyscale dE as well.


• Luminance, black depth and contrast ratio (static) – measuring the brightness, black depth and resulting contrast ratio of the mode being tested, whether that is at default settings or later after calibration and profiling. We aim for 120 cd/m² luminance which is the recommended luminance for LCD/OLED desktop monitors in normal lighting conditions. Black depth should be as low as possible, and contrast ratio should be as high as possible.


• Shadow detail – this is evaluated with the screen configured to a 200 nits white luminance for consistency between different monitors, and viewed in a dimly lit room. This first 16 greyscale shades are measured using our UPRTek MK550T spectro device (0.002 nits lower limit) for shades near-black, and the results are plotted on a graph relative to a target gamma curve (usually 2.2 gamma). Where the measurement line crosses the 0.01 nits point on the Y-axis is typically the visual threshold for where we would start to be able to detect luminance compared with black (0.00 nits). We combine these objective measurements with visual tests using a grey shade test pattern to determine the first visible shade, and then rank the shadow detail performance accordingly.


• Gamut coverage – we provide measurements of the screens colour gamut relative to various reference spaces including sRGB, DCI-P3, Adobe RGB and Rec.2020. Coverage is shown in absolute numbers as well as relative, which helps identify where the coverage extends beyond a given reference space. A CIE-1976 chromaticity diagram (which provides improved accuracy compared with older CIE-1931 methods) is included which provides a visual representation of the monitors colour gamut coverage triangle as compared with sRGB, and if appropriate also relative to a wide gamut reference space such as DCI-P3. The reference triangle will be marked on the CIE diagram as well.


• dE colour accuracy – a wide range of colours are tested and the colour accuracy dE measured. We compare these produced colours to the sRGB reference space, and if applicable when measuring a wide gamut screen we also provide the accuracy relative to a specific wide gamut reference such as DCI-P3. An average dE and maximum dE is provided along with an overall screen rating. The lower the dE the better, with differences of <1 being imperceptible (marked by the green area on the graph), and differences between 1 and 3 being small (yellow areas). Anything over dE 3 needs correcting and causes more obvious differences in appearance relative to what should be shown. dE 2000 is used for improved accuracy and providing a better representation of what you would see as a user, compared with older dE methods like dE 1994, as it takes into account the human eye’s perceptual sensitivity to different colours.

SDR Performance

Default Setup

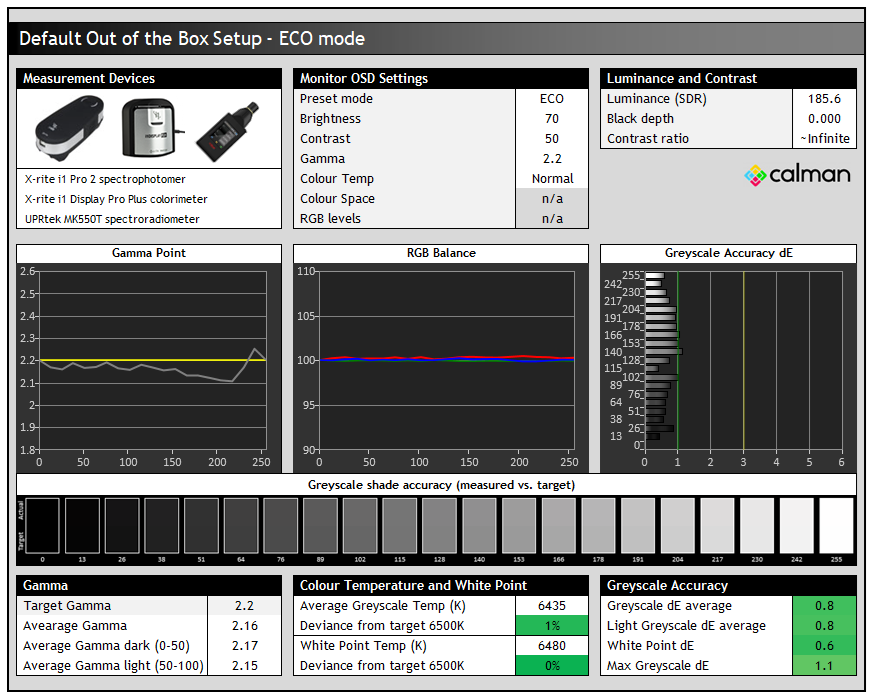

The screen is set in the ‘ECO’ preset mode by default with the full wide gamut of the backlight active. In that mode we found a very accurate performance for gamma and greyscale, with a very good RGB balance and excellent greyscale accuracy which was impressive.

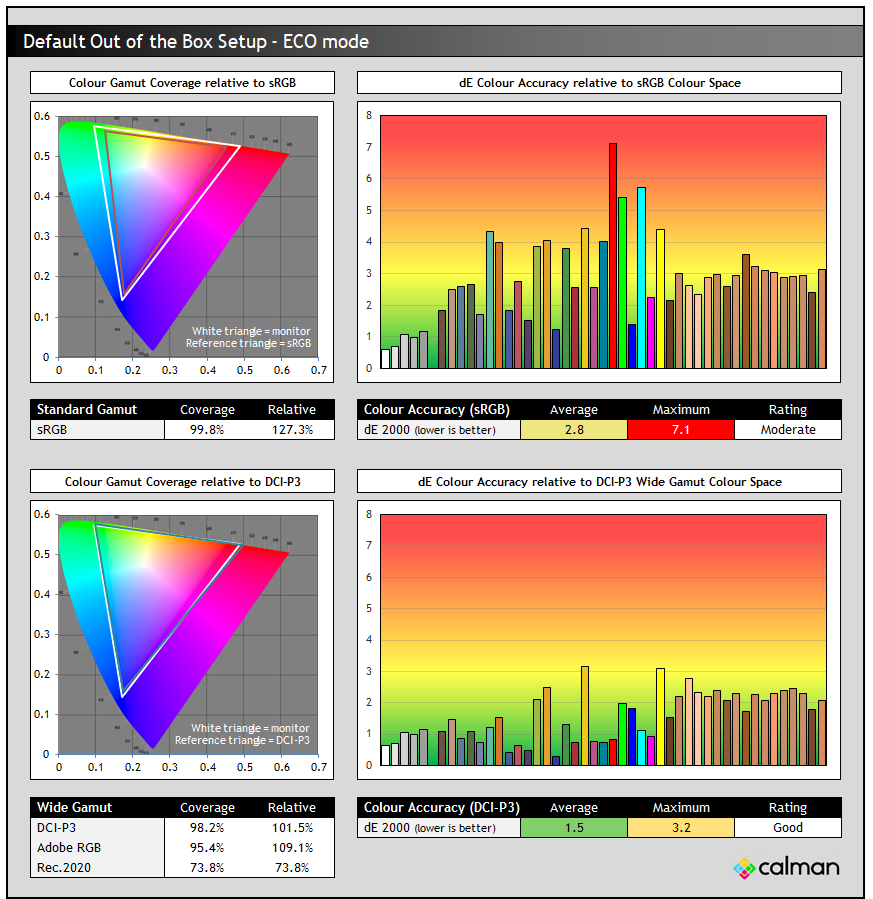

With the wide native wide colour gamut active here, the accuracy of sRGB colours was only moderate, with a dE 2.8 average measured. This is normal for a wide gamut screen and to be expected and we will look if we can improve sRGB / SDR accuracy in a moment.

The native colour gamut of this panel basically matches the DCI-P3 reference and with that closer match the accuracy of DCI-P3 colours out of the box was good, with a dE 1.5 measured. This native mode is ideal for working with HDR content or providing a more vivid and saturated image that some people prefer, especially for gaming and multimedia.

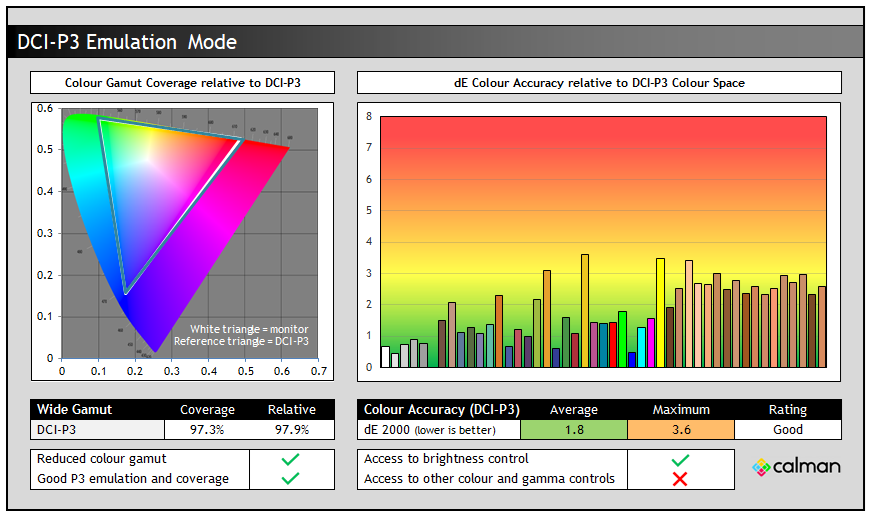

DCI-P3 Emulation

Gigabyte provide a colour space setting in the menu with an option for DCI-P3 which seems to make a couple of changes. Unfortunately when using this mode and the other colour space emulation approaches, you lose access to all the colour, gamma and contrast settings. You only have access to the brightness control (thankfully) but this mode is quite limited in flexibility as a result.

Most noticeably this DCI-P3 mode changes to an sRGB gamma curve instead of 2.2, making near-black detail brighter and improving shadow detail, although changing the appearance of darker content overall. The RGB balance, colour temp and greyscale accuracy remained very good as before, it’s just the gamma which has changed.

This mode seems to clamp the native mode ever so slightly, dropping the DCI-P3 coverage a tad to ~97%, and removing the very minor over-coverage, now measured at 97.3%. This makes very little practical difference, and colour accuracy remained basically the same with dE 1.7 average measured in that mode. Gamma and greyscale remain unchanged and since the native mode is so close to DCI-P3, you might as well just use that as it leaves you with better control over the other settings, unless you want an sRGB gamma instead of 2.2.

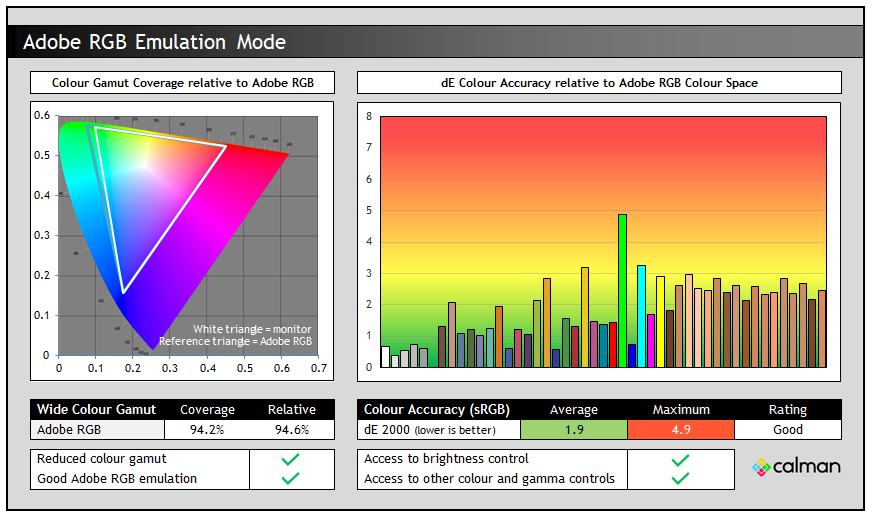

Adobe RGB Emulation

Gigabyte also provide a colour space setting in the menu for Adobe RGB when using the normal preset modes (like ECO, or Custom) which operates with a 2.2 gamma again, but clamps the colour space back closer to this target. You again lose access to all the OSD controls other than for brightness.

In the native mode we’d measured 95.4% absolute coverage, and 109.1% relative coverage (i.e. some over-coverage of Adobe RGB). Using this mode reduced that over-coverage nicely, although we were still a little short of full coverage due to the limitations of the panels native gamut. This mode did offer good colour accuracy for Adobe RGB content though, with the main deviance being in green shades where the colour space of the panel couldn’t quite cover the full area. It’s useful to see this mode offered as well though.

sRGB Emulation

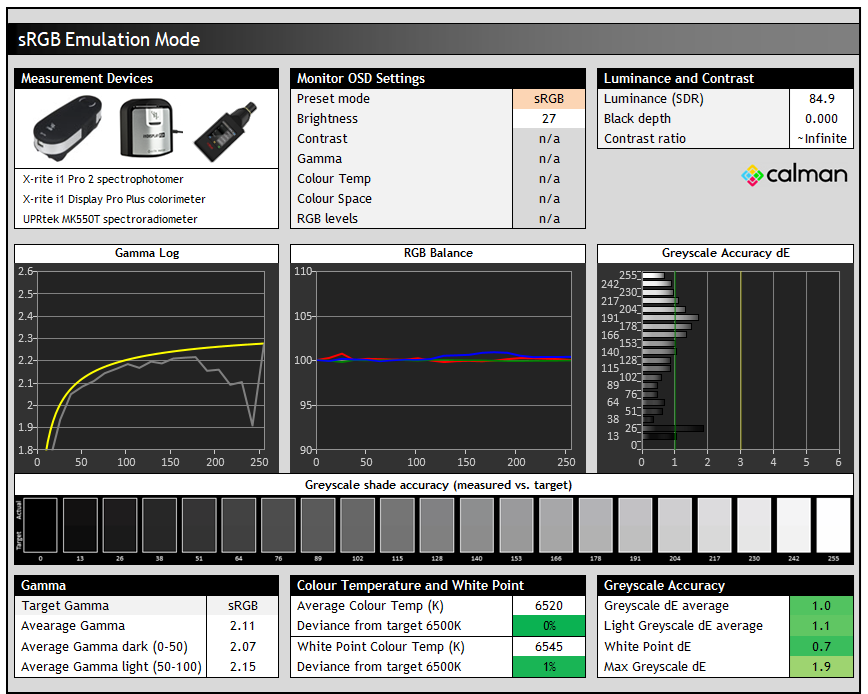

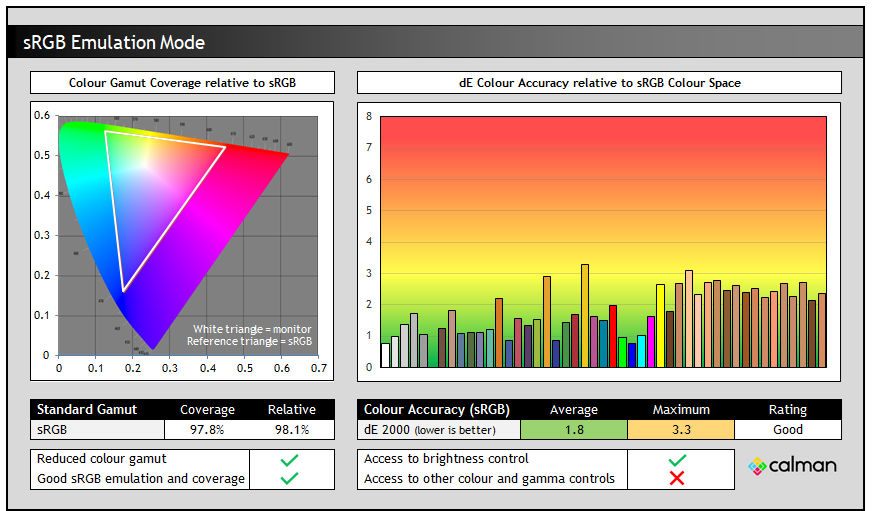

Gigabyte provide access to an sRGB emulation mode in a slightly different way to the DCI-P3 and Adobe RGB options. Rather than it being an option in the colour space section, you have to activate the specific sRGB preset mode instead. That does have some drawbacks though, as you lose access to pretty much all the other settings for colours, gamma etc and only retain access to the brightness control. At least that’s available still, but we would have preferred a more flexible mode, like we had with DCI-P3 and Adobe RGB options.

This mode is configured to the slightly different sRGB gamma curve, instead of 2.2. This improves the near black shadow detail by increasing the luminance for those shades, something that we will look at in more detail in a moment. The RGB balance, colour temp, white point and greyscale accuracy remained very good as in the other mode. Note that the default brightness is set lower in this mode, but can be changed to suit.

The main thing that this mode does it that it clamps the native colour space back very close to the sRGB reference, removing the ~27% over-coverage we’d seen in the native mode. This now offers good colour accuracy for sRGB / SDR content, although it could have perhaps been a little better tuned we felt, although it’s still good. The main limitation with this mode is the locked settings which doesn’t give you much flexibility.

Shadow Detail

We also explored and tested the near-black shadow detail which can sometimes be a challenge on OLED panels, even though they have a true 0 nits black depth and ~infinite contrast. We explored the reasons for this and the challenges that display manufacturers face when calibrating OLED panels in our detailed article here.

For these tests screen was configured to 200 nits white luminance, and we tested the screen in several colour space modes, as well as at different refresh rates.

• Native gamut mode
• sRGB and DCI-P3 modes

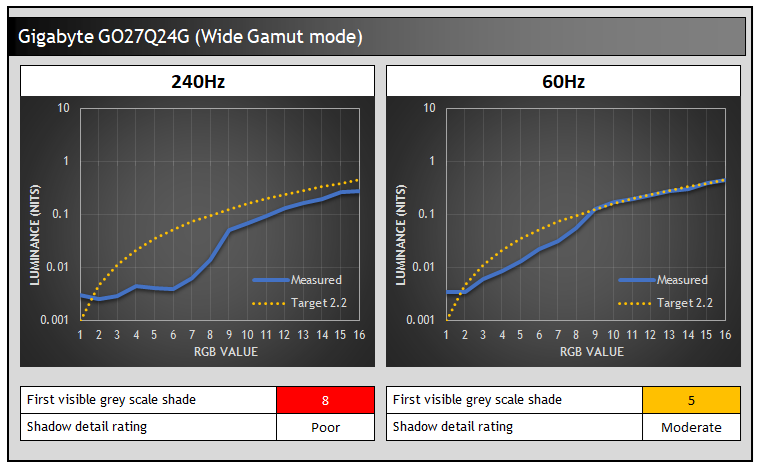

Native gamut mode

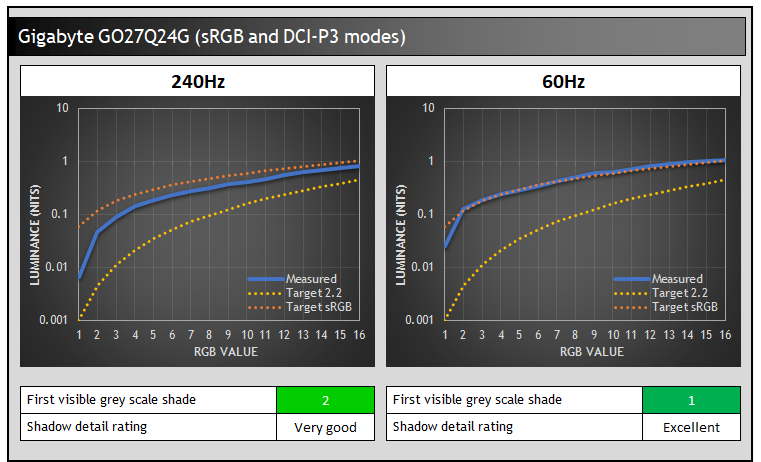

sRGB and DCI-P3 modes

Shadow detail was weak on this screen in the native mode as we’ve seen on some OLED panels in the past. The gamma was factory calibrated at a 60Hz refresh rate which is common, and so performance was a little better at that refresh rate, straying further from the target luminance for darker shades at the higher 240Hz refresh rate. We explored that topic in more detail in our article here. This meant that near-black shades were a bit brighter at lower refresh rates due to the gamma shift, which made darker content a bit easier to see.

In both the DCI-P3 and sRGB modes the gamma is actually configured to the sRGB gamma curve, which as you can see is again accurately calibrated at 60Hz, and ever so slightly lower at 240Hz. The shadow detail and overall brightness of darker content was substantially improved in these modes which was great news. This is perhaps one reason to use the DCI-P3 mode for wide gamut / native mode, and the sRGB mode if you want to work with SDR content more commonly.

Black Equalizer setting

Gigabyte provide a ‘Black equalizer’ setting in the menu which can adjust darker scenes quite well. Turning this up from the default 10 to a setting of 12 helps improve shadow detail in native mode (RGB 3 now visible at 240Hz) without raising the black depth visibly, but anything higher starts to raise black as well. You probably don’t need this if you’re using the sRGB/DCI-P3 modes, but it is useful if you’re using the native mode. You can experiment with this for darker gaming and multimedia if needed.

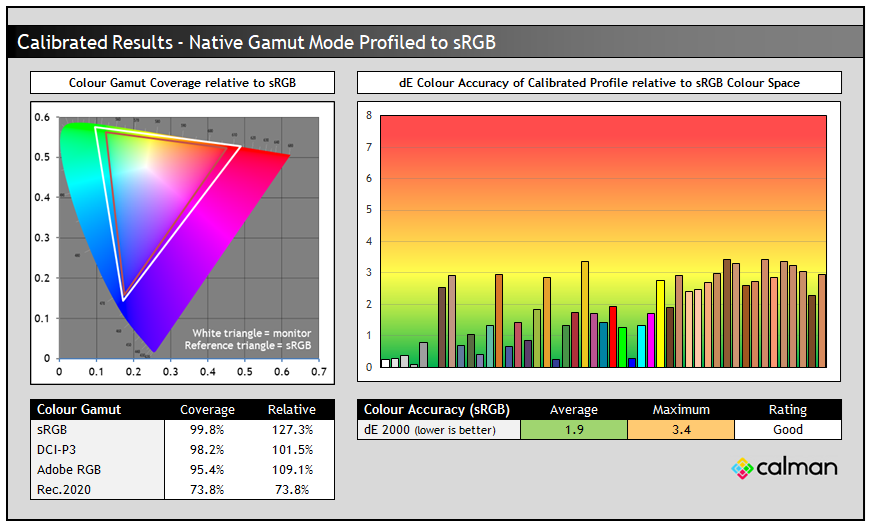

Calibration

Calibration and profiling can produce some very good overall results and could be useful though if you wanted to operate the screen within its native wide gamut mode, but then map the colour space back to something else like sRGB or Adobe RGB for instance for colour-aware applications (e.g. Photoshop). You would need a suitable calibration device and software for this, or you could also try our calibrated ICC profile.

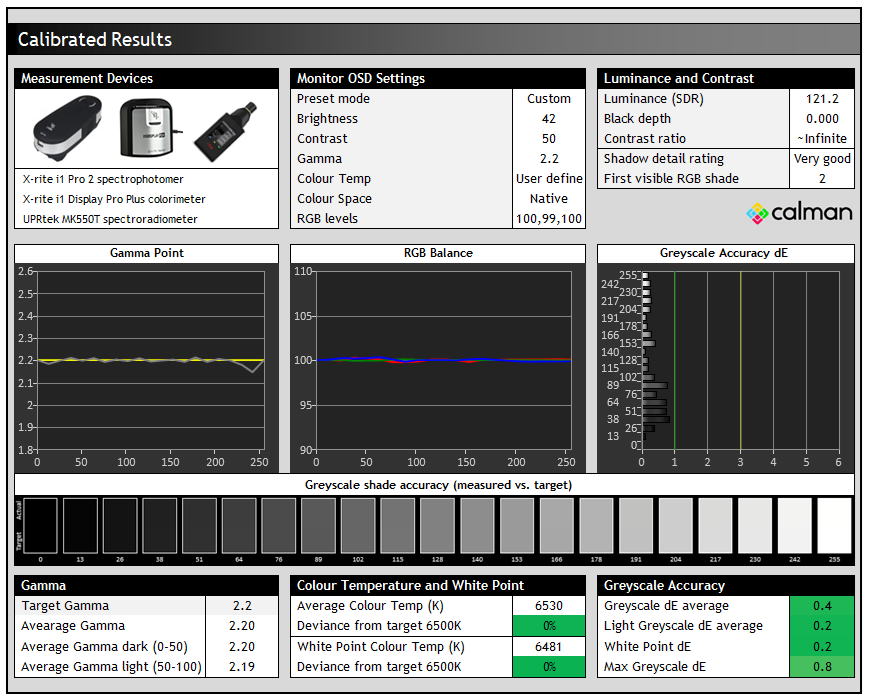

The screen was profiled to 2.2 gamma, 6500K colour temp and to the sRGB colour space. The screen was left in its native wide gamut mode, but this profile will be used in colour-aware applications to map back to sRGB in this instance.

Overall the calibrated results were good as you’d hope, although it didn’t seem to be possible to fully correct the colour accuracy despite multiple attempts. We’ve seen this on other WOLED monitors in the past before including the equivalent Asus model using this panel, but we’re not sure of the cause. Gamma and greyscale was excellent and this also improved shadow detail very well.

Best Settings Guide

• On our Patreon Insider tier and above you can find our full ‘Best settings guide’ for this screen which includes all our recommended calibrated settings and ICC profile for SDR mode, as well as other best settings guidance for other configurations, modes, HDR, gaming and everything else.
• If you only want just our standard SDR settings and calibrated profile, that is available via our ICC database (without all the other best settings guide).

beenhere

ICC Profiles and Monitor Calibration Database

Find the recommended settings and a calibrated ICC profile for your display.
[View here]

General and Office

The resolution of 2560 x 1440 is standard on a 27″ sized screen and is comfortable without scaling being required, providing a decent desktop space for multi-tasking and split screen work. Higher pixel densities from 4K resolutions are available in this size of OLED monitor, but at higher prices, and the lower 1440p resolution is more suitable for fast-paced gaming, being a lot easier to power than 4K. As this is an OLED panel you need to be mindful of image retention risks for lots of static work, although there’s a good range of OLED Care options and a robust 3-year warranty offered as well.

Sub-pixel layout and text clarity

This screen uses an older Gen WOLED panel which features their original RWBG sub-pixel layout, later optimized on more recent panels to RGWB. This means that text clarity is not as good as some of the modern panels, a potential concern if you’re looking to use it for lots of text and office applications, but not really an issue for gaming and multimedia. It leads to more noticeable fringing on text in static uses and this screen is more suited to dynamic content. If you’re concerned about text clarity then you will probably prefer some of the high pixel density options like the 27″ 4K models available on the market if you can stretch your budget further.

Glossy coating

The improved ‘RealBlack glossy’ coating provides a super sharp and clear image, free of any grain which is great news. That removes the very minor grain visible on the first generation glossy WOLED panel. Gigabyte didn’t actually ever use that coating themselves on their OLED monitors, we only saw that from Asus with their XG27AQDMG back in 2024. The glossy coating certainly looks crisper and cleaner than the matte anti-glare coated WOLED panels you can find on the market.

A lot of people prefer this coating finish, and it helps the image pop more as well. On the other hand, it is not as well suited to viewing in brighter room conditions or where you have light sources and windows facing the screen. It’s a lot more reflective and produces mirror-like reflections which can be distracting in some situations. You will need to consider your usage environment to decide if glossy is right for you, or if you’d be better off with a matte anti-glare coating.

Useful Office Features

	Features	Notes
USB type-C connectivity (DP Alt mode)
USB type-C power delivery		15W
Daisy chaining support
KVM switch
PiP and PbP support
USB data ports
Easy access USB data ports
Integrated speakers
Audio output / headphone out
Mic input
Integrated webcam
Ambient light sensor
Motion sensor
Stand adjustments		Tilt, height, swivel, rotate
VESA mount support		100 x 100mm
Integrated power supply		Small external brick
Tripod socket
Firmware updates
Fan-less design

As this is part of Gigabyte’s affordable OLED range it is missing some features compared with their flagship OLED monitors. There’s no USB-A data ports on this screen, which is a shame. That also means that despite there being a USB-C connection (with a fairly low 15W power delivery) there’s no KVM switch function. There’s also no speakers on this model, something featured on most of their other OLED monitors, albeit with low power delivery. There is however PiP/PbP support and a headphone connection which are useful, and the stand provides a great range of adjustments too.

Blue Light

Blue light output
Blue peak wavelength	455 nm
Blue light portion	35.61%
Low blue light modes available	But ‘Reader’ mode preset
Low blue light mode temp	5026K (Reader mode)

The native panel spectral distribution is shown above at a calibrated 6500K white point, where the blue peak is at 455 nm. The spectral distribution shows this is a previous-Gen WOLED panel before they shifted to a 4-layer structure for their Tandem WOLED technology in 2025.

There aren’t any specific ‘Blue Light Filter’ settings in the menu but there is a ‘Reader’ preset mode which has the colour temp set to warm by default, and results in a ~5026k white point. That may be useful in the evening or for lots of text work potentially.

Flicker free

Flicker
Flicker free verified
PWM / flicker frequency	n/a

HDR

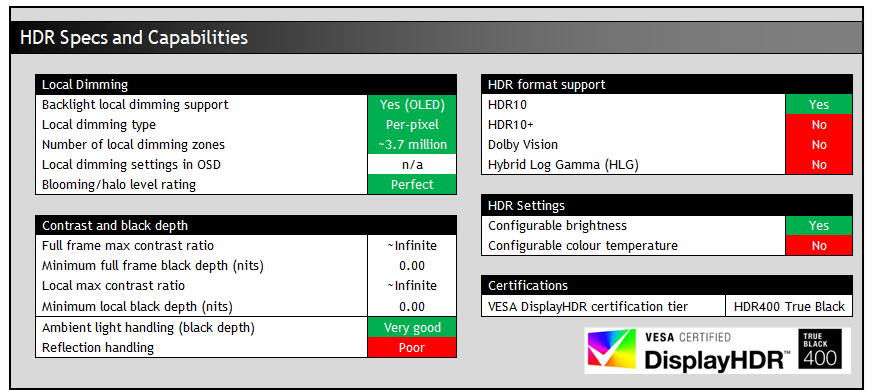

Being an OLED panel, the GO27Q24G is well-equipped to handle HDR content with its per-pixel level dimming allowing for true blacks, a basically infinite contrast ratio and the avoidance of all blooming and halos. In these regards it can easily surpass any Mini LED backlit LCD monitor. However, it cannot reach the same luminance levels as Mini LED screens, and carries a “peak brightness” spec of 1300 nits, which will then also lower as the content on your screen changes and the APL increases which is normal on this technology. This is one key area where Mini LED screens can look brighter and deliver a more impactful HDR experience.

The WOLED panel maintains better contrast and black depth in the presence of ambient light than alternative QD-OLED panels, which show raised blacks that start to go grey as ambient light increases, especially where those light sources are in front of the screen. Some improvements have been made with 2026 ‘QuantumBlack’ coated QD-OLED panels, but they still remain behind WOLED in this regard.

The ‘RealBlack glossy’ coating used on this screen also helps with black depth retention, as it doesn’t diffuse light across the panel like a matte AG coating would, but on the flip side you do need to be more mindful of mirror-like reflections with this coating and the screen is not as well suited to brighter viewing environments.

play_circle_filled

HDR Demo and Test Video

Test and demo the HDR on your display using our handy compilation, highlighting black depth, contrast and peak brightness capabilities.
[View here]

HDR modes

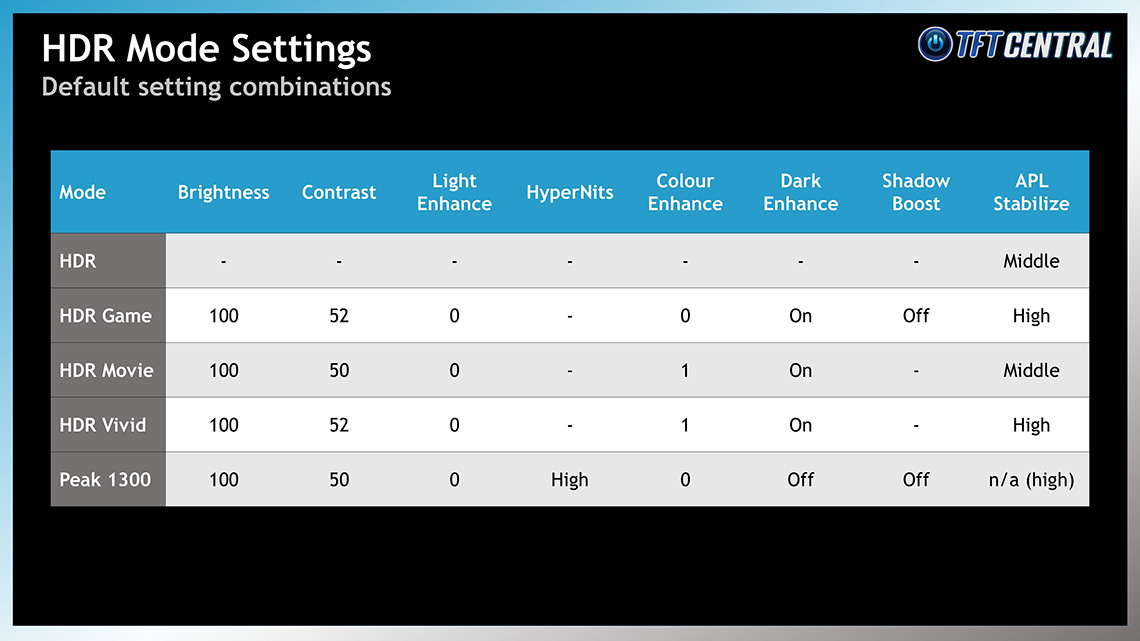

Like other recent Gigabyte OLED monitors the GO27Q24G offers a wide range of HDR modes, settings and configurations to choose from. Each mode is basically a preset configuration of different settings, and in many of the modes you can change these settings if you want. The main setting which also impacts brightness in HDR is the APL stabilize setting which is available in the OLED care menu. The defaults for each mode are shown below:

You can see that the normal “HDR” mode has most of it’s settings locked and behaves like a traditional “True Black” mode that we’ve seen on loads of OLED monitors before. The ‘Peak’ mode is the only one to offer access to the new HyperNits feature which we explored in detail recently, and you will also a new ‘Shadow Boost’ setting available in that mode too which we will also explore later.

HDR Testing Methodology Explained

Performance is measured and evaluated with a high degree of accuracy using a range of testing devices and software. The results are carefully selected to provide the most useful and relevant information that can help evaluate the display while filtering out the wide range of information and figures that will be unnecessary. For measurement, we use a UPRtek MK550T spectroradiometer which is particularly accurate for colour gamut and colour spectrum measurements. We also use an X-rite i1 Pro 2 Spectrophotometer and a X-rite i1 Display Pro Plus colorimeter for various measurements. Several other software packages are incorporated including Portrait Displays’ Calman color calibration software – available from Portrait.com.

We measure the screen at default settings (with all ICC profiles deactivated and factory settings used). The results presented can be interpreted as follows:

HDR accuracy section

• Greyscale dE – this graph tracks the accuracy of each greyscale shade measured from 0 (black) to 100 (white). The accuracy of each grey shade will be impacted by the colour temperature and gamma of the display. The lower the dE the better, with differences of <1 being imperceptible (marked by the green line on the graph), and differences between 1 and 3 being small (below the yellow line). Anything over dE 3 needs correcting and causes more obvious differences in appearance relative to what should be shown. In the table beneath the graph we provide the average dE across all grey shades, as well as the white point dE (important when considering using the screen for lots of white background and office content), and the max greyscale dE as well.


• RGB Balance and colour temperature – the RGB balance graph shows the relative balance between red, green and blue primaries at each grey shade, from 0 (black) to 100 (white). Ideally all 3 lines should be flat at the 100% level which would represent a balanced 6500k average colour temperature for all grey shades. This is the target colour temperature for desktop monitors, popular colour spaces like sRGB and ‘Display DCI-P3’ and is also the temperature of daylight. It is the most common colour temperature for displays, also sometimes referred to as D65. Where the RGB lines deviate from this 100% flat level the image may become too warm or cool. Beneath this RGB balance graph we provide the average correlated colour temperature for all grey shades measured, along with its percentage deviance from the 6500k target. We also provide the white point colour temperature and its deviance from 6500k, as this is particularly important when viewing lots of white background and office content.


• ST 2084 EOTF (PQ) tracking – this graph tracks the PQ curve in HDR mode, akin to gamma measurements in SDR. The yellow line represents the ideal PQ curve, while the grey line plots the monitors measured performance.


• Luminance, black depth and contrast ratio (top right hand table) – measuring the brightness, black depth and resulting contrast ratio of the mode being tested. The luminance figure captured here is from a standard 10% APL window area measurement, although further luminance measurements are included in a separate section to capture “peak brightness” and the luminance at other APL areas. This section also measures the black depth on the screen and the resulting contrast ratio.

  For HDR, any local dimming is left enabled, and so we measure the black depth adjacent to a white test image and calculate the “local contrast ratio” from there. We also measure the black depth towards the edges of the screen, away from the white test area in order to calculate the “maximum full frame contrast ratio” across the whole panel. These figures will often be different on LCD screens with local dimming, as this dimming can be more effective for dark areas further away from light areas.


HDR colours section

• Gamut coverage (2D) – we provide measurements of the screens colour gamut for HDR relative to the very wide Rec.2020 colour space. Coverage is shown in absolute numbers as well as relative, which helps identify where the coverage extends beyond a given reference space. A CIE-1976 chromaticity diagram (which provides improved accuracy compared with older CIE-1931 methods) is included which provides a visual representation of the monitors 2D colour gamut coverage triangle as compared with Rec.2020. The higher the coverage, the better.


• dE colour accuracy – a wide range of Rec.2020 colours are tested and the colour accuracy dE measured. An average dE and maximum dE is provided along with an overall screen rating. These numbers are calculated based on the colour tone and hue, and ignore any luminance error. The lower the dE the better, with differences of <1 being imperceptible (marked by the green area on the graph), and differences between 1 and 3 being small (yellow areas). Anything over dE 3 needs correcting and causes more obvious differences in appearance relative to what should be shown. dE 2000 is used for improved accuracy and providing a better representation of what you would see as a user, compared with older dE methods like dE 1994, as it takes into account the human eye’s perceptual sensitivity to different colours.

HDR Performance

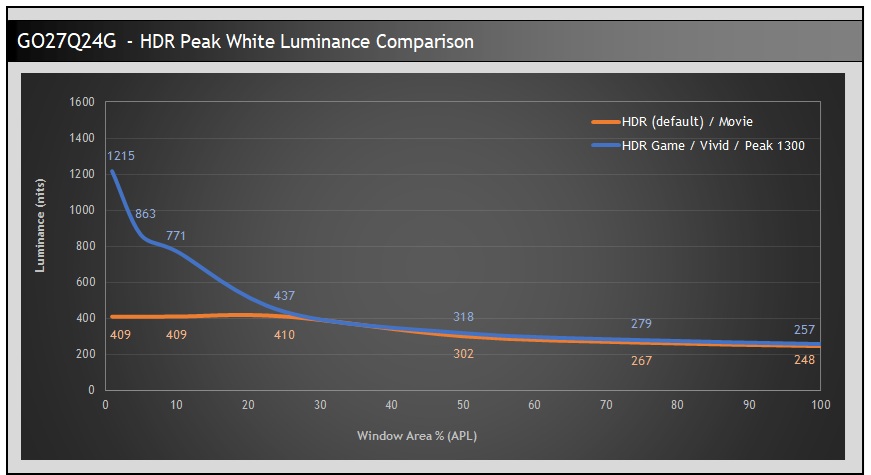

Peak White Luminance Measurements

You can see from the default settings table that the HDR default mode and movie mode are set with APL stabilize on medium, whereas the Game, Vivid and Peak modes have it set to high. A quick comparison of the peak white luminance performance at different APL shows the variation between the different modes, impacted by the APL stabilize setting.

These measurements alone don’t tell the full story, but you can see that those modes with APL stabilize on high can reach much higher peak brightness in each case. Note also that those modes set on the APL stabilize medium setting only reach around 410 nits maximum, and are locked to lower luminance levels, primarily to conform to the VESA DisplayHDR 400 True Black certification process and significantly reduce ABL dimming during changing content.

Average greyscale luminance and perceived brightness

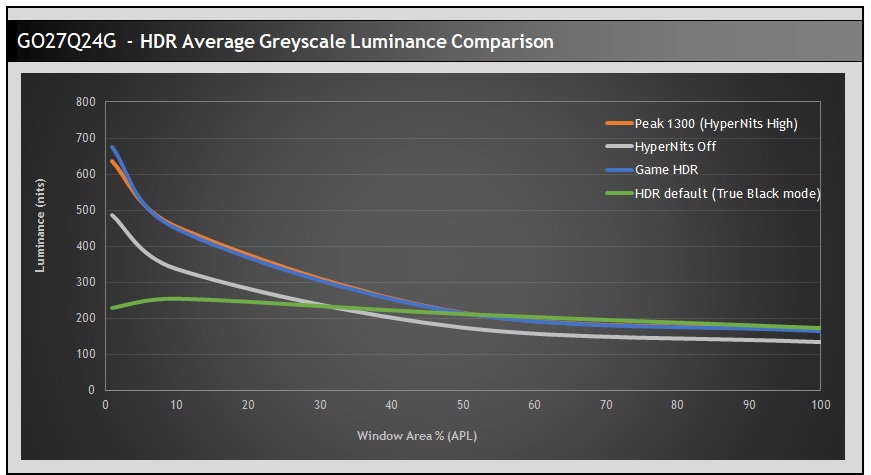

If we compare the average greyscale luminance we can see that the Game HDR and Peak 1300 modes (with HyperNits = High) offer the highest overall brightness experience and we expect these will be the preferred modes for most users as a result. You’ve got a choice though between those two configurations, or you may want to use them both potentially.

The HDR Game mode has a slightly boosted contrast setting and ‘Dark Enhance’ enabled with the aim being to improve darker gaming situations. On the other hand the Peak 1300 mode could be more useful for movie and video playback with the flexibility to customise the other settings as you want. Both modes offer access to the new ‘Shadow Boost’ setting as well, but you now have two modes where you can configure things for different use-cases. At the moment since the ‘Dark Enhance’ and ‘Shadow Boost’ modes are mutually exclusive, you may wish to have one mode configured to use the first setting, and the other to use the second setting. See our HyperNits testing article for more measurements on those two settings to see how they perform and improve darker content.

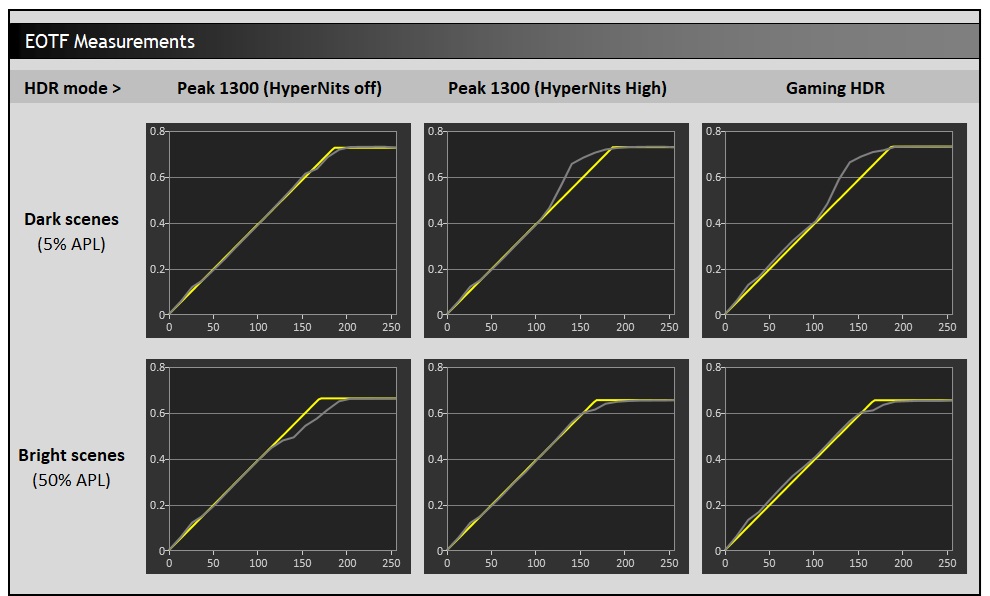

EOTF Measurements

We’ve provided EOTF measurements for a few of the available modes above. The HDR Game and Peak 1300 modes (HyperNits = High) offer very similar EOTF performance and are likely the optimal modes people will want to use. There is some over-brightening in low APL scenes which can lead to a little loss of detail in some situations. However, this helps to retain an accurate EOTF tracking in higher APL / brighter overall scenes, as well as making the overall HDR experience brighter. This is pretty typical behaviour for an OLED monitor configured in this way.

In contrast you can see that if you turn off HyperNits in the peak 1300 mode, the EOTF tracking shows some pretty significant roll-off in brighter scenes, leading them to be a lot darker than intended. This behaves like a familiar “peak xxx nits” mode you’ll see on many OLED screens, with the HyperNits feature introduced to overcome brightness drops.

EOTF and Greyscale Measurements

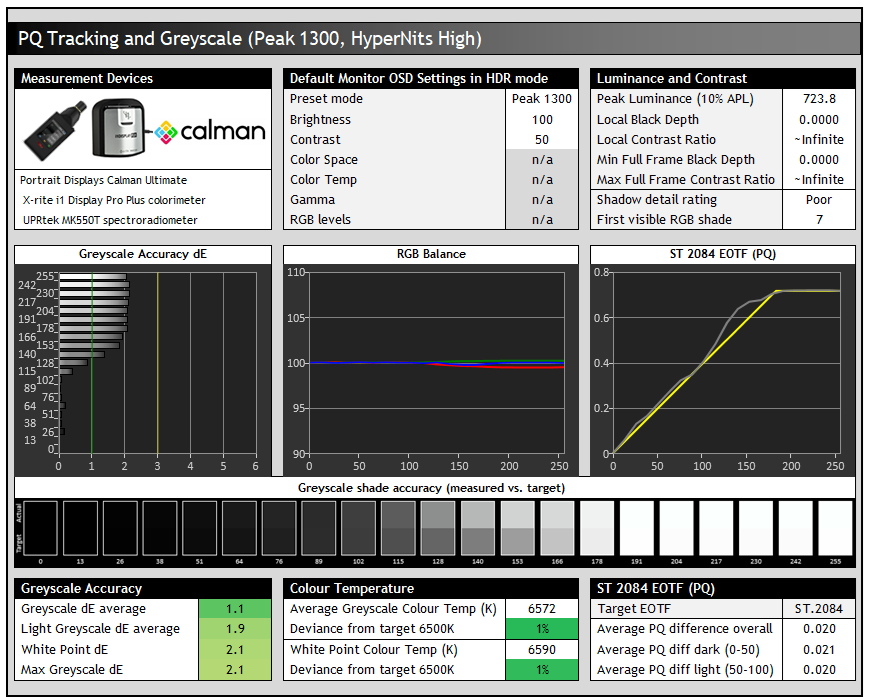

Having settled on the Peak 1300 mode (HyperNits High) as one of the two preferred configurations, we measured this in a bit more detail to evaluate the greyscale accuracy and temperature. There’s a good RGB balance in HDR mode with a decent overall greyscale temp and a good white point as well which was good news. There aren’t any controls for colour temp in HDR mode, just a setting called ‘color enhance’ which can tweak vividness a little. Thankfully the greyscale temp is very good by default anyway and close to D65.

Shadow detail was unfortunately weak in HDR mode as we’d found in the native SDR mode, with the first visible greyscale shade being RGB 7 at both native 240Hz and at 60Hz. You can brighten some of the dark details using the ‘shadow boost’ setting in the menu, but it only makes minor improvements overall, and doesn’t change which is the first visible RGB shade. It can help brighten darker scenes a little though. The ‘black equalizer’ setting is unfortunately not available in HDR mode as that had worked pretty nicely in SDR for improving shadow detail. This is one of the weaker areas of the screens performance and something we’d like to see improved in the future where possible.

HDR Colours

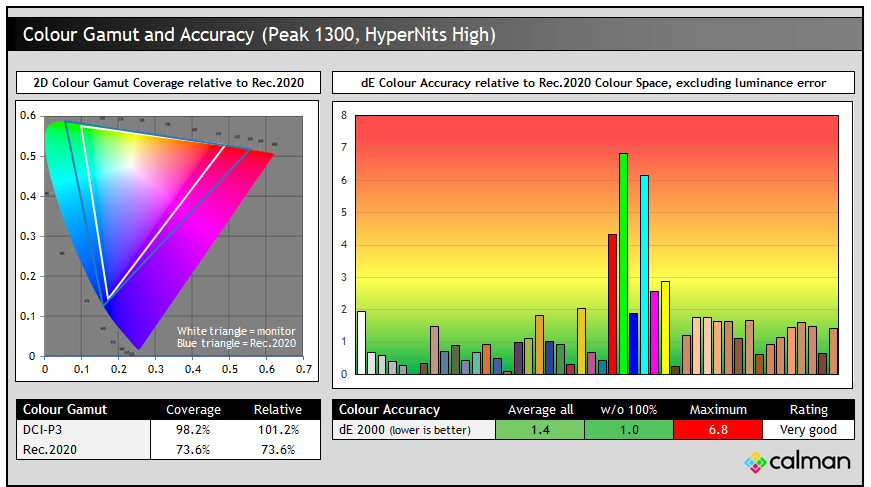

The colour gamut in HDR mode was the same as in native SDR mode (no additional clamping) and we had a good match to the DCI-P3 colour space used for a lot of HDR content. Colour accuracy was very good overall with dE 1.0 average, if we ignore the 100% primaries from Rec.2020 which this panel cannot reach.

Gaming

The GO27Q24G is well-suited to gaming, using an OLED panel which is well-known for its near-instant response times and excellent motion clarity capabilities at high refresh rates. It can also support HDR gaming very well with amazing blacks and contrast ratio. The ‘RealBlack glossy’ coating provides a super clear and clean image although you need to be mindful of the positioning of external light sources relative to the screen to reduce reflections.

(at native resolution)	Refresh Rate
Maximum Refresh Rate DisplayPort	240Hz
Maximum Refresh Rate USB type-C	240Hz
Maximum Refresh Rate HDMI	240Hz
VRR range	48 – 240Hz
VRR certifications (to date)	NVIDIA ‘G-Sync Compatible’
ClearMR certification tier

The screen has a lower refresh rate (240Hz) than many other recent OLED monitors, which now offer 360 – 540Hz commonly. This is a more mid-tier refresh rate, but it’s certainly not slow and still provides great motion clarity and frame rate support. There’s many people who don’t want or need anything higher than this, either because they’re not playing competitively, don’t play games that support super high frame rates, or don’t have a powerful enough system to drive it anyway. Having a lower refresh rate on this new panel helps ensure a more affordable price point too. There’s no dual-mode support on this model either, although if it did have one it would only offer you a lowly 720p mode so it’s unlikely to be missed by most people.

To help support the demands of 1440p @ 240Hz the screen features adaptive-sync, giving Variable Refresh Rate (VRR) support for both NVIDIA and AMD systems which is great news. It has received certifications under the NVIDIA ‘G-sync Compatible’ scheme so far, and we expect AMD ‘FreeSync Premium’ will also follow as this was used for many of Gigabyte’s other OLED monitors.

	Other Features
OLED VRR Anti flicker
Black Frame Insertion (BFI)
Dual-mode support
Gaming extras	Timer Refresh rate / FPS counter Black equalizer Tactical Switch 2.0
Emulated gaming sizes	24″ emulation. 4:3 and 5:4 modes

There’s a familiar wide range of gaming settings and extras on offer here too from the ‘Game Assist’ menu and a few options in the main OSD menu. This includes their UltraClear mode which operates a black frame insertion function for improved motion clarity in certain gaming situations which we will test in a moment. There’s also an OLED VRR Anti-flicker control, and a useful black stabilizer setting for adjusting darker content.

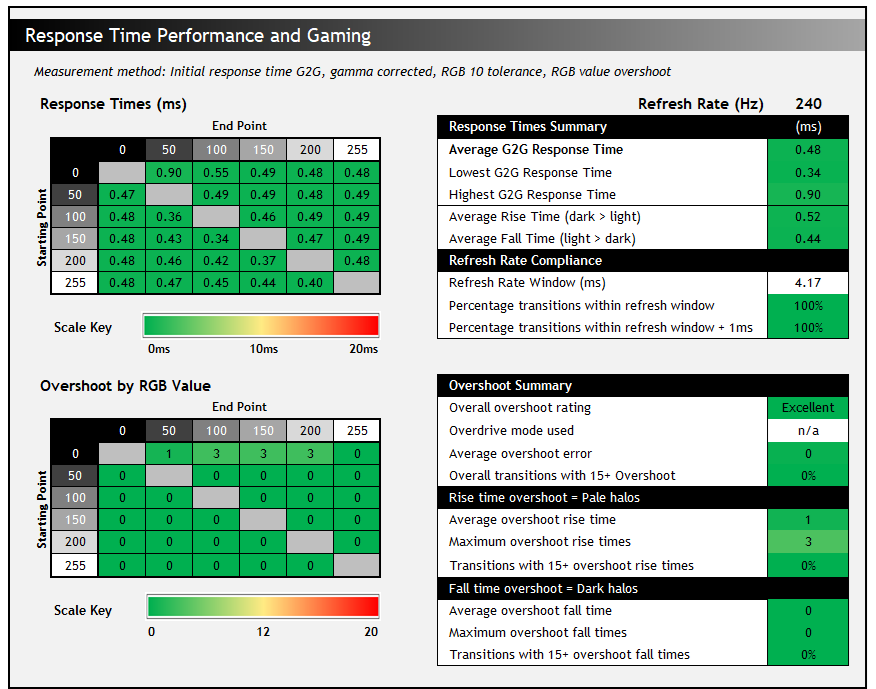

Response Times and Motion Clarity

The OLED panel offers the usual near-instant response times you’d expect, and there’s a native 240Hz refresh rate which offers very good motion clarity. Powering these kind of frame rates at 1440p will be easier than on 4K equivalent screens.

You can find much higher refresh rates from some other OLED monitors now, but let’s not lose sight of the fact though that 240Hz on an OLED is still very good, equivalent in motion clarity to a ~360Hz LCD and likely more than enough for most gamers. If you’re a serious or competitive gamer or focused on taking gaming experience further then other options are available but at a higher price point. The Asus ROG Swift PG27AQWP-W for instance uses the fastest currently available OLED panel and has a 540Hz native refresh rate, plus a dual-mode function for 720Hz at 720p.

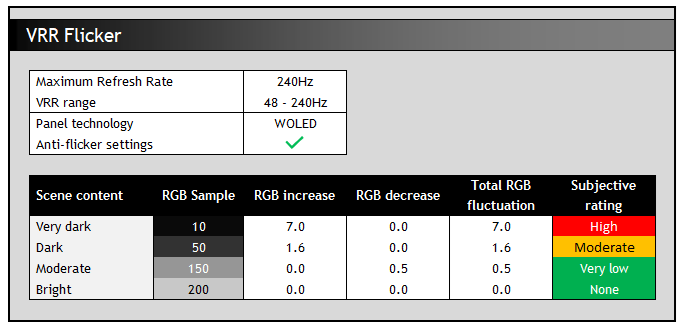

VRR Flicker

All OLED monitors can show flicker and gamma fluctuations in VRR situations and this is something we studied and tested in detail in our article here. Remember that just because a screen can show flicker, doesn’t mean you’ll necessarily experience it during your usage and from your system. Please see our detailed article for loads more information about this issue on OLED monitors.

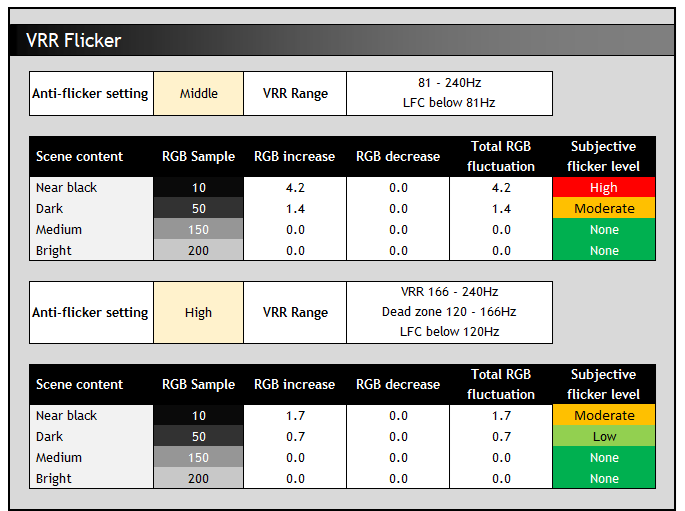

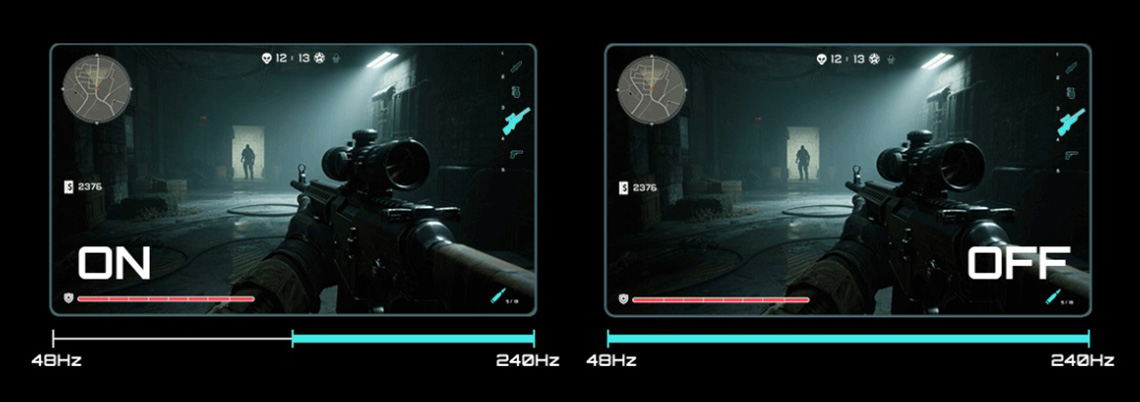

Gigabyte have included their recently introduced ‘Anti-flicker’ settings on this screen, with options for ‘off’, ‘middle’ and ‘high’ available in the OSD menu. The screen switches to black for a couple of seconds when you change this setting.

With the anti-flicker modes turned off we saw an active VRR range of 48 – 240Hz with LFC used below that. Like other WOLED technology panels we tested in our detailed study, the gamma response is directly tied to the frame rate during VRR situations. For instance at RGB 10 this gets progressively brighter up to RGB 17 as the frame rate drops from 240fps to 48fps. This only applies when using VRR we should reiterate.

As a result it is large swings in frame rate that cause the most potential flicker and gamma shift. The trick with this panel would be to keep frame rates as consistent as possible, at whatever level you can achieve, to reduce the likelihood of flicker. Remember that this data represents the maximum potential flicker, and it would be less with more steady frame rates. We saw the most noticeable flicker in darker scenes and content where it reaches high levels on this screen, with basically none visible in lighter content which was very good. The flicker did seem to be a bit more pronounced than on the competing Asus model.

The anti-flicker modes restrict the VRR range in an effort to reduce the gamma shift that can occur with large frame rate swings. Using the Middle setting just restricts the range a little from 48 – 240Hz to 81 – 240Hz and that has a small impact on total potential flicker since the frame rate doesn’t drop as low, and so the gamma can’t shift as much.

The ‘high’ mode has the most benefit on visible flicker but that’s because It introduces a “dead zone” in the range where VRR is turned off altogether which obviously eliminates VRR flicker for that portion completely, but means that VRR is not actually being used so that could perhaps introduce some tearing artefacts in some cases potentially. It also adjusts the point at which LFC kicks in, shifting that to kick in earlier at 120fps instead of the previous lower 48fps level for ‘off’ mode. Worth experimenting with if you experience any problems in real-world content.

Extreme Low Motion Blur (ELMB), BFI mode

Like some other recent Gigabyte OLED monitors, the GO27Q24G has an added BFI (Black Frame Insertion) mode for blur reduction. Gigabyte call this ‘UltraClear’ and it’s the alternative to a strobing motion blur reduction backlight you might find on some LCD monitors. Rather than the backlight being strobed off and on rapidly (because there is no backlight on an OLED panel), a black frame is inserted periodically in to the image instead.

Motion Blur Reduction Mode
Motion Blur Reduction mode / BFI
Refresh rates supported	120Hz only
60Hz single strobe operation
Blur reduction available with G-sync/FreeSync VRR
Available in SDR mode
Available in HDR mode
Viable with games consoles

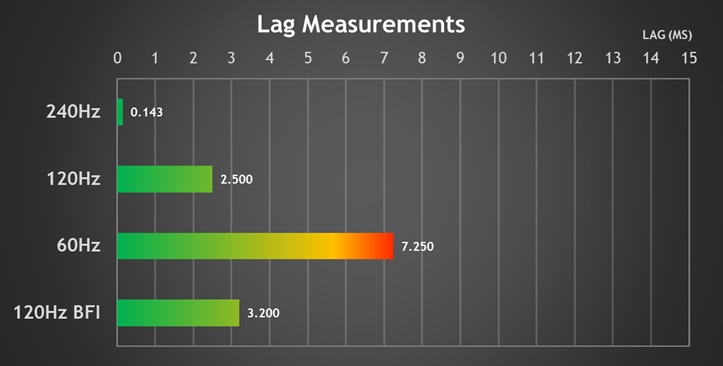

Lag penalty	~0.7ms
Brightness capability (SDR, max refresh rate supported)
Brightness control available
Independent brightness between on/off modes
Motion blur OFF – Max brightness	~253 nits (uniform brightness mode)
Motion blur ON – Max brightness	125 nits

UltraClear mode is available only in limited scenarios as it is on other OLED monitors. It can only operate at half the maximum refresh rate of the panel, and so in this instance it runs only when you manually set your refresh rate to 120Hz. You also have to disable adaptive-sync VRR in the menu first, and so the operation remains pretty clunky. It’s only available in SDR and not in HDR too like on other Gigabyte OLED monitors with this feature that we’ve tested. There is a lag penalty of only around 0.7ms when using UltraClear mode compared with standard 120Hz mode. More lag info in the following section.

With UltraClear enabled, the brightness control is at least still available all the way up to 100, but annoyingly it’s not remembered independently to the off state which makes it a bit frustrating as you have to change it each time you enable or disable this mode. We’d like to see independent memory between on/off modes for brightness in the future. We measured a maximum brightness of only 125 nits in UltraClear mode, but it does operate with a uniform brightness behaviour (no ABL dimming) at all times on this screen which is why it’s a little lower than some other models. You do not have access to the ‘APL Stabilize’ setting when using UltraClear mode, so you cannot disable this. The Asus equivalent screen reached up to 172 nits peak in their equivalent ELMB mode, but that had ABL dimming and dropped down to 132 nits for full screen white for instance which makes it very similar to this Gigabyte screen in many situations.

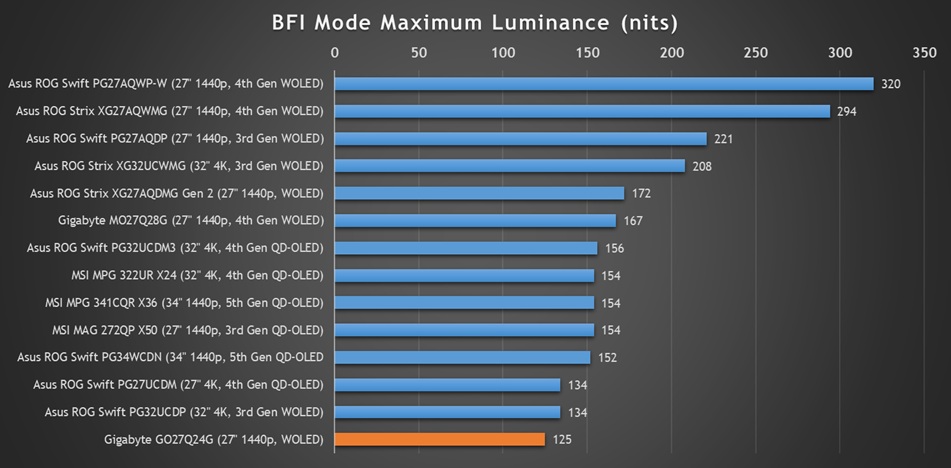

If you’re concerned about brightness in this mode we’ve seen more recent WOLED panels reach a bit brighter, especially the 4th Gen Tandem WOLED offerings like their MO27Q28G for instance (167 nits) and some competing models from Asus (294 – 320 nits).

Above is the perceived motion clarity of the screen at 120Hz and 240Hz when running in normal mode, and then also at 120Hz with UltraClear enabled. You can see that the motion clarity looks the same at 120Hz with UltraClear as it does at 240Hz with the mode turned off. This is to be expected given the 50:50 duty cycle of the BFI function. This clarity is the same across the entire screen though thanks to the super-fast response times of the OLED panel, you don’t need to worry about which area of the screen is the cleanest and clearest, like you do on an LCD screen with a strobing blur reduction backlight.

UltraClear use-cases

This mode can help improve perceived motion clarity at 120Hz nicely, and so might be useful if you can only power up to around 120 fps from your system, or if you’re using a device which only supports that refresh rate maximum, such as a modern games console. You could game at 120Hz and use UltraClear in that mode to bump your motion clarity up to the equivalent of 240Hz – a shortcut if you will to reaching 240Hz-like motion clarity.

If your system is more powerful, you can get the same motion clarity if you stick with 240Hz and can reach up to 240fps. That’s along with the improved latency and frame rates that running that high will offer. You can also then use VRR and other settings, so if you can power the screen at that level you will probably want to try and just use the screen in normal mode instead where possible. Had this BFI mode also been available at 240Hz, it could have offered another step up in motion clarity, reaching 480Hz-like levels. Sadly it’s only possible at half the native refresh rate at the moment.

Lag

Read our detailed article about input lag and the various measurement techniques which are used to evaluate this aspect of a display. The screens tested are split into two measurements which are based on our overall display lag tests and half the average G2G response time, as measured by our oscilloscope. The response time element, part of the lag you can see, is split from the overall display lag and shown on the graph as the green bar. From there, the signal processing (red bar) can be provided as a good estimation of the lag you would feel from the display. We also classify each display as follows:

Lag Classification (updated)

• Class 1) Less than 4.17ms – the equivalent to 1 frame lag of a display at 240Hz refresh rate – should be fine for gamers, even at high levels
• Class 2) A lag of 4.17 – 8.33ms – the equivalent of one to two frames at a 240Hz refresh rate – moderate lag but should be fine for many gamers. Caution advised for serious gaming
• Class 3) A lag of more than 8.33ms – the equivalent of more than 2 frames at a refresh rate of 240Hz, or 1 frame at 120Hz – Some noticeable lag in daily usage, not suitable for high end gaming

There is an extremely low lag at native refresh rate, measured at 0.143 ms total display lag, and leaving us with only 0.02 ms of estimated signal processing lag which is basically nothing and is perfectly fine for competitive gaming situations. There’s only a little bit more at 120Hz (2.5ms) but 60Hz is a bit slower still (7.25ms) which is normal for most screens. The UltraClear BFI mode adds only ~0.7ms of additional lag compared with the native 120Hz mode which is good and makes that a potentially useful option overall without having to put up with loads more lag.

Console Gaming

The screen has a native 2560 x 1440 resolution (1440p) panel, but can accept a “virtual 4K” input signal, allowing for wide support of modern games consoles. Importantly this allows for HDR support from an Xbox Series X which can only run in HDR mode at 4K.

	Console Gaming
Native panel resolution	2560 x 1440
Maximum resolution and refresh rate supported	4K @ 120Hz
Virtual 4K support
4K at 24Hz support
4K at 50Hz support
HDMI connection version	2.1
HDMI-CEC auto switch
VRR (variable refresh rates)
Auto Low Latency Mode (ALLM)
HDR10 support
Dolby Vision HDR support
Black Frame Insertion (BFI) support	at 120Hz
Integrated speakers
Headphone connection
Ultra high speed HDMI 2.1 cable provided

We confirmed via an Xbox Series X that 4K 120Hz works fine along with HDR10 support and features like VRR and ALLM. You can use the UltraClear blur reduction mode when running at 120Hz which is potentially useful to boost motion clarity, and there’s support for 4K 24Hz and 4K 50Hz video content too.

Note that there are no integrated speakers on this model unlike some of Gigabyte’s other screens, and so you’ll need to connect headphones or some kind of external soundbar/speaker system when using a console. That’s one potential gap for the GO27Q24G if you’re looking to play console games or connect other external devices but that’s one of the few things it’s missing.

Conclusion

The GO27Q24G is a very good, capable OLED monitor. Sure, it doesn’t have all the latest and greatest specs you can find in the OLED space – it’s a slightly older WOLED panel, it doesn’t have the newer sub-pixel layout which makes text a little worse, it’s got a mid-tier refresh rate and it doesn’t have the full feature set you might find on flagship models. But at a (current) price of only $399.99 USD / £379.99 GBP , it’s really hard to argue with that value.

The 1440p 240Hz panel is still a very popular spec and it’s great to see Gigabyte offer another glossy-coated OLED monitor in their range which we know will attract a lot of people. They might have done away with a few features we’re used to on some of their screens – there’s a lower spec USB-C connection, no KVM switch and no speakers for instance. But on the other hand they’ve included loads of their performance features like UltraClear BFI and VRR Anti-flicker modes, PiP/PbP support, a wide range of HDR options and controls, and their new HyperNits HDR feature too. Gaming is very good with good motion clarity, super-low input lag and great console support. SDR accuracy is generally very good too, with a lot of colour space modes available and well-tuned gamma and greyscale, although the shadow detail is quite weak in some cases. You can correct that through some of the settings in SDR mode which helps a lot, but it remains a bit of a challenge in HDR.

All in all if you’re looking to venture in to the World of OLED monitors but don’t want to spend loads of money on a top-tier model, this is a very strong entry-level offering and definitely worth checking out.

Pros	Cons
Strong all-round performance for a great price	Shadow detail is weak in some configurations
Still lots of added extras like UltraClear BFI, VRR Anti-flicker and HyperNits HDR modes	More limited feature set due to price point
Good feature set considering the entry-level price point	Older generation WOLED panel, missing some of the Tandem WOLED improvements from the most recent panels

We may earn a commission if you purchase from our affiliate links in this article- TFTCentral is a participant in the Amazon Services LLC Associates Programme, an affiliate advertising programme designed to provide a means for sites to earn advertising fees by advertising and linking to Amazon.com, Amazon.co.uk, Amazon.de, Amazon.ca and other Amazon stores worldwide. We also participate in a similar scheme for Overclockers.co.uk, Newegg, Bestbuy , B&H and some manufacturers.

Stay Up to Date
